SkyView Roof Deck System
This comprehensive product lineup includes adjustable pedestals, invisible wind uplift solutions, roof deck slabs, wood tile, and fiberglass grate. Together, these components offer unmatched flexibility, empowering designers to create elevated rooftop spaces that are visually stunning, durable and high-performing. The system’s intuitive design also simplifies installation for contractors, ensuring efficiency without compromising quality. With SkyView, reimagine what’s possible for roof deck design and construction.
L: 7", W: 7", H: 0.38"
L: 177.8, W: 177.8, H: 9.6mm
D: 3"
D: 76.2mm
L: 7", W: 7", H: 2.25"
L: 177.8, W: 177.8, H: 57.2mm
D: 4.43", H: 5"
D: 112.5, H: 127mm
D: 4.43", H:10"
D: 112.5, H: 254mm

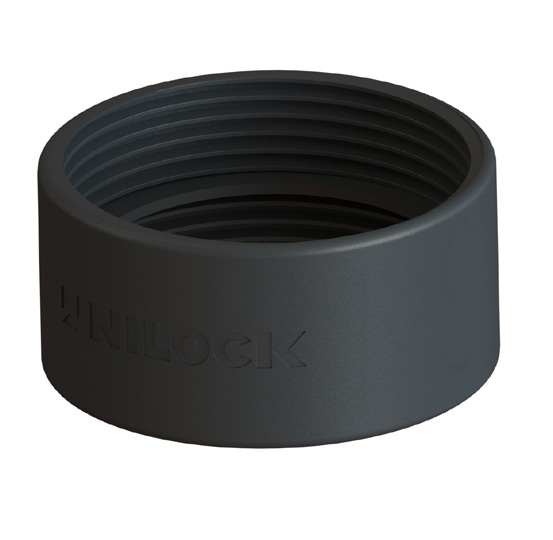

D: 4.75", H: 2.3"
D: 120.7, H: 58.4mm

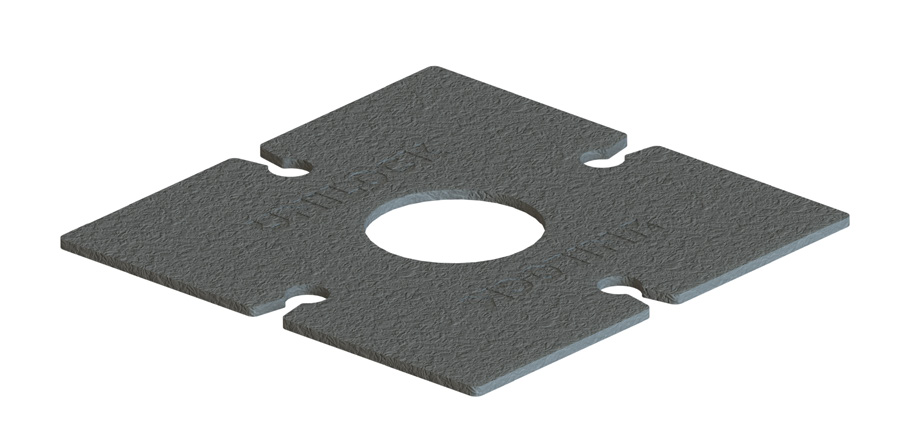

L: 6.5", W: 6.5", H: 0.13"
L: 165.1, W: 165.1, H: 3.3mm

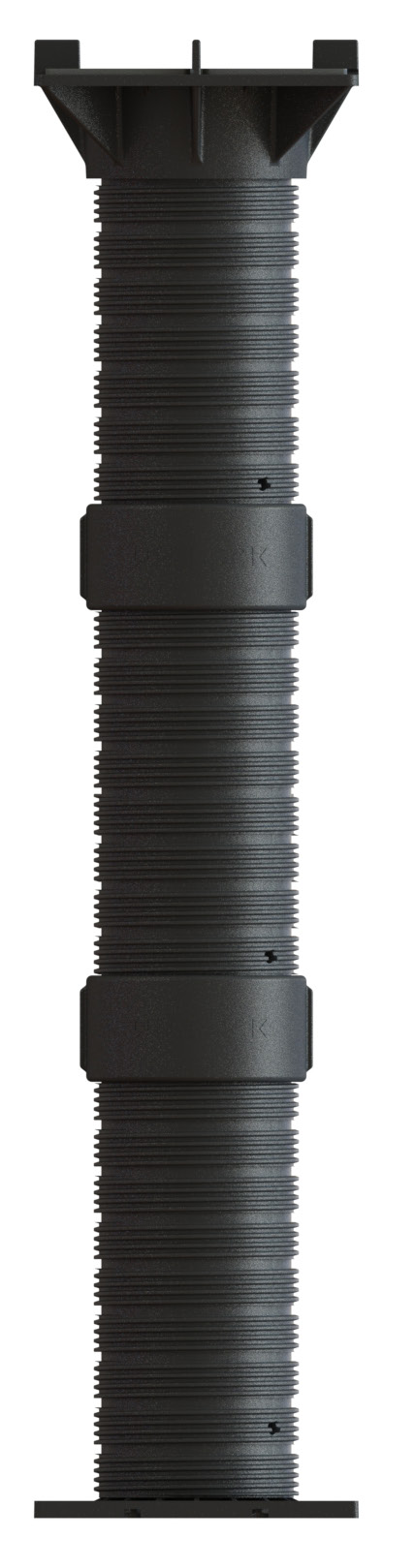

Components:
1 - Pedestal Standard Kit
3 - 10” Cores
2 - Collars
1 - Top Pad (optional)

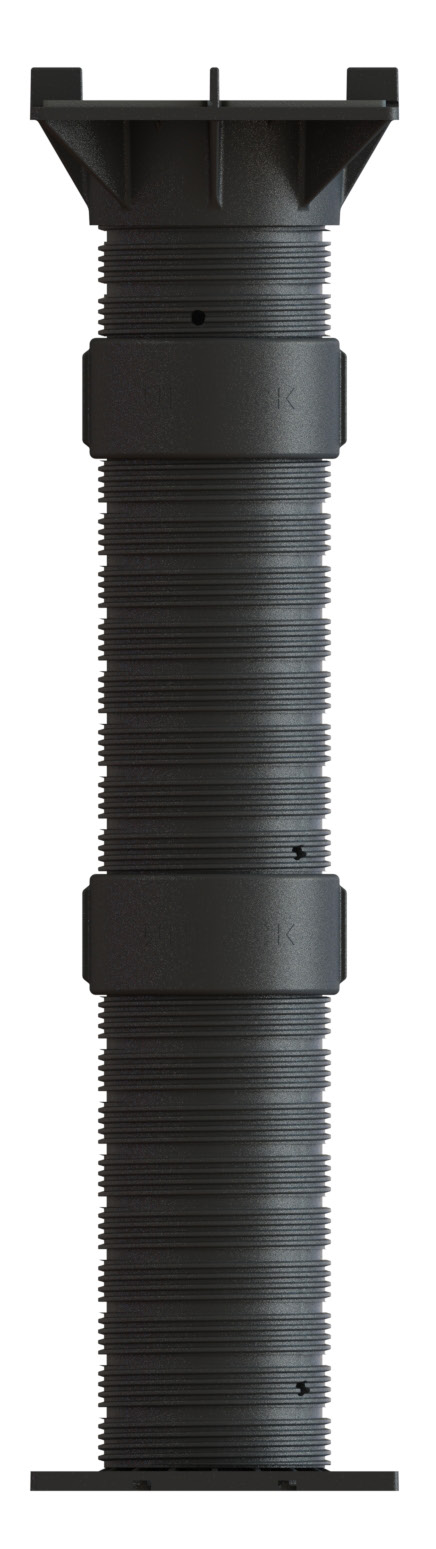

Components:
1 - Pedestal Standard Kit
2 - 10” Cores
2 - 5” Cores
2 - Collars
1 - Top Pad (optional)

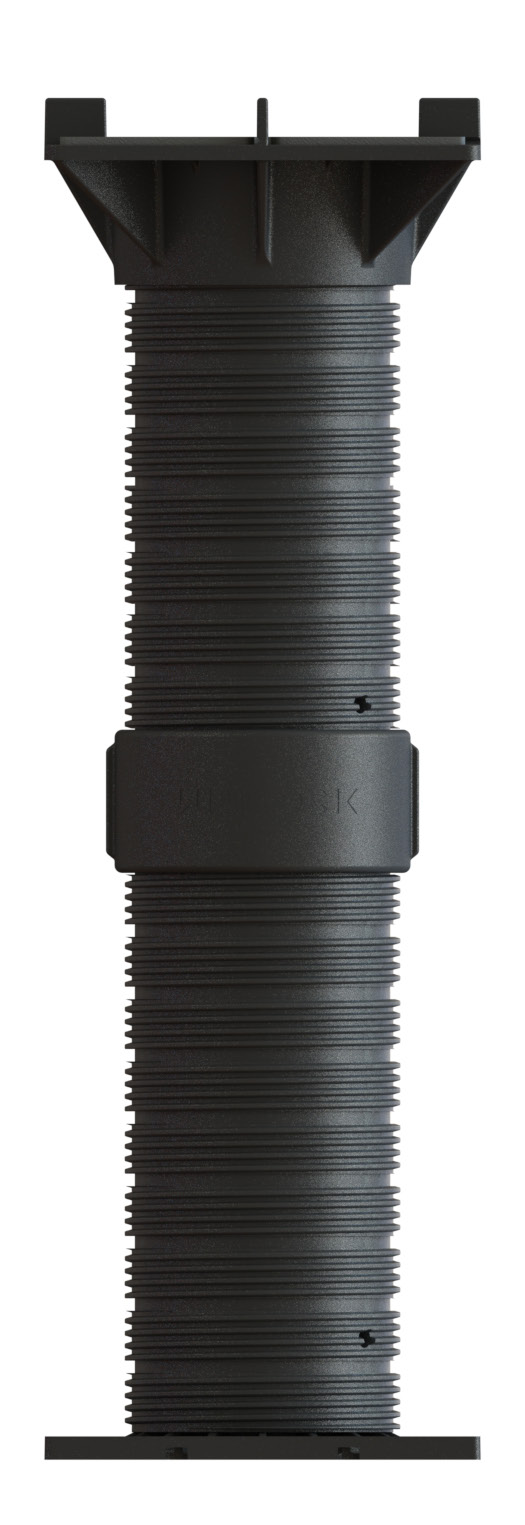

Components:
1 - Pedestal Standard Kit
2 - 10” Cores
1 - Collar
1 - Top Pad (optional)

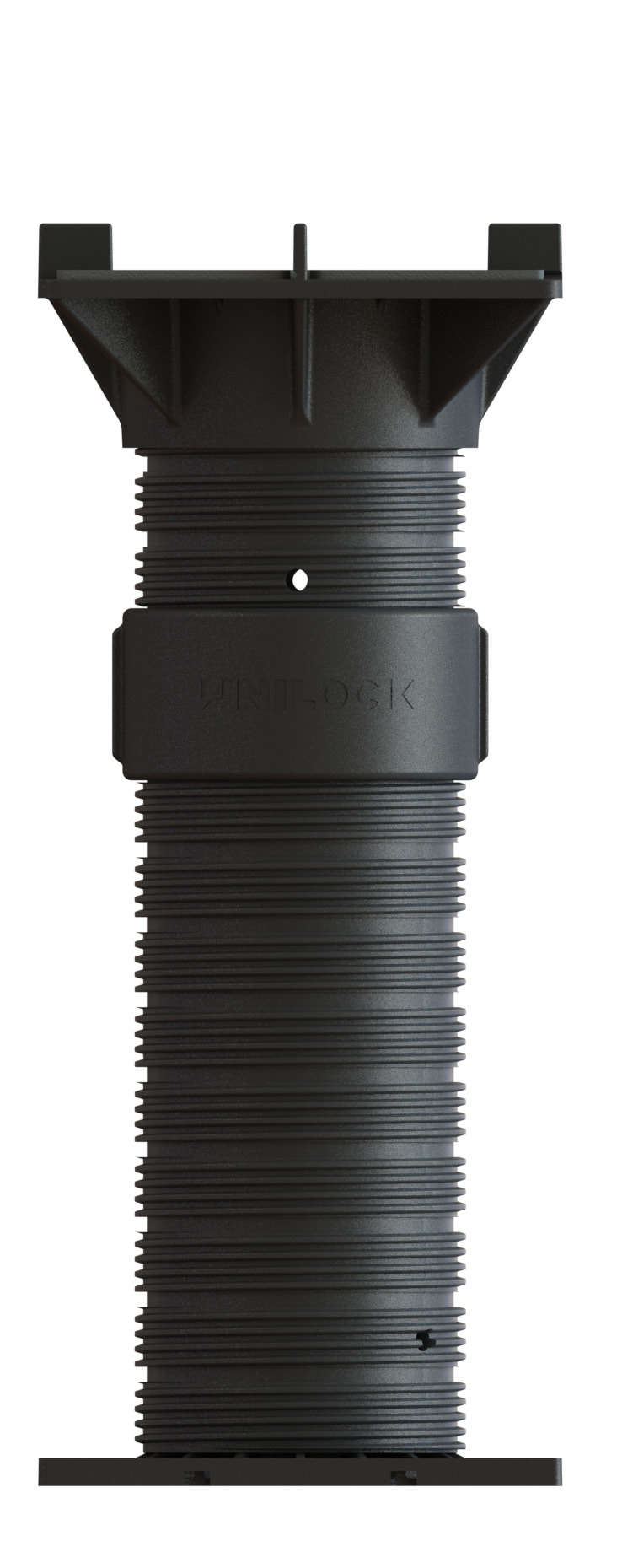

Components:
1 - Pedestal Standard Kit
1 - 10” Core
1 - 5” Core
1 - Collar
1 - Top Pad (optional)
Components:
1 - Pedestal Standard Kit
1 - 10” Core
1 - Top Pad (optional)

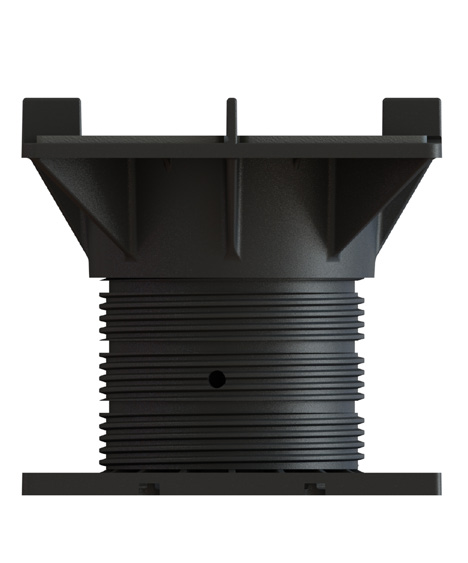

Components:
1 - Pedestal Standard Kit
1 - 5” Core
1 - Top Pad (optional)

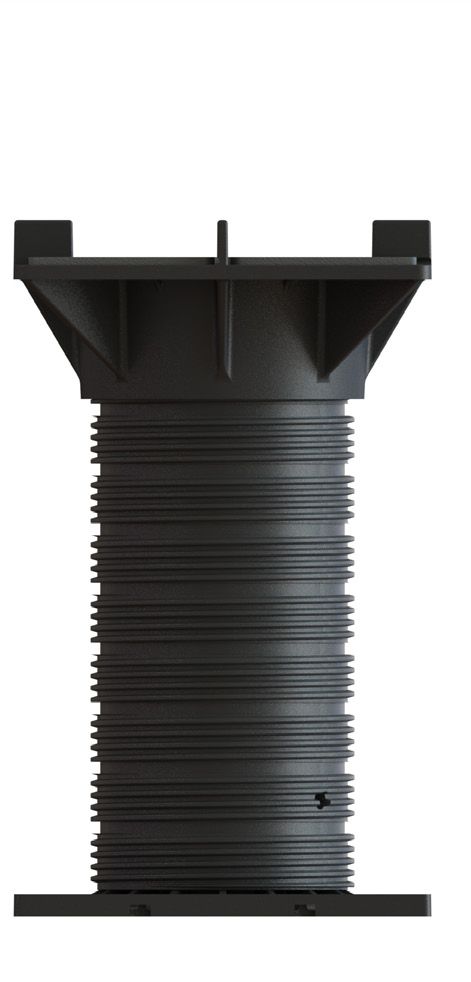

The SkyView Pedestal System is the simpliest and highest quality pedestal system on the market. The patent-pending design uses up to nine compentents to create pedestals ranging from 1/2” up to 31” in height. With these versatile yet simple components, SkyView Pedestals ensure unmatched adaptability, ease of installation and durability for any application over structure including roof tops, terraces, parking garages and more. Watch this video to learn more about the SkyView Pedestal System.

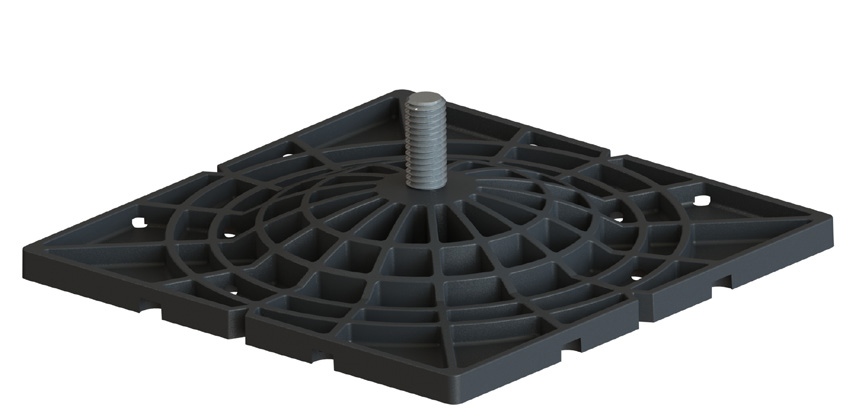

BASE
Acts as the foundation of the pedestal
Large Surface Area: The 49 square inch Base provides a stable foundation for the system and aids in load distribution.
Textured Dome: The convex dome on the top of the Base fits into the concave socket on the botom of the Cores, allowing orbital movement to adjust for slopes up to 6%. Its textured surface improves the connection between the base and cores.
Drainage Holes: A collection of holes in the Base allows for proper water drainage while maintaining its structural integrity.
V-Notches: Each side of the Base features a v-shaped notch to assist in aligning a field of pedestals.

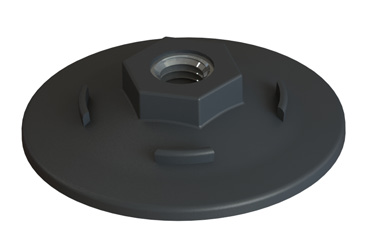

WASHER
Secures a ‘Core’ to the ‘Base’
Curved Profile: The bottom of the Washer mimics the socket shape on the Cores to ensure a flush connection when installing a Core on the Base.

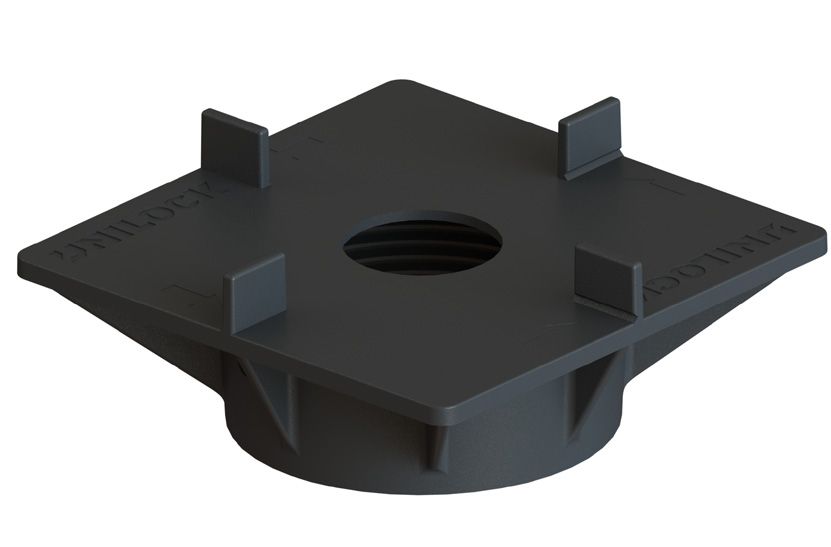

TOP
Provides a large, stable surface to lay surfacing materials
Large Surface Area: The 49-square-inch top provides an ideal footprint to support various surfacing materials, including concrete slabs, wood tiles, natural stone, porcelain tile, and grates.
3/16” Tabs: The top has four 3/16-inch tabs, one on each side, to ensure fast and easy alignment when installing surfacing materials such as concrete slabs.
Sight Hole: Allows the installer to visually verify full engagement of the Top with the Core, ensuring a secure connection between the two components.

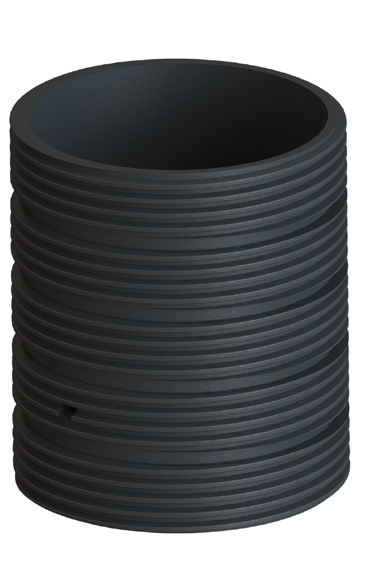

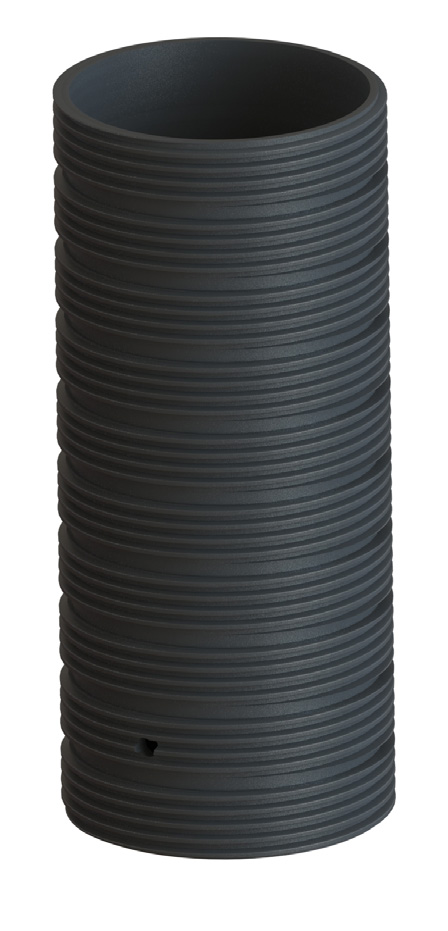

5” CORE & 10” CORE
Extends the pedestal height
Textured Socket: The concave socket on the bottom of the Core fits onto the convex dome on the Base, allowing orbital movement to adjust for slopes up to 6%. Its textured surface improves the connection between the base and cores.

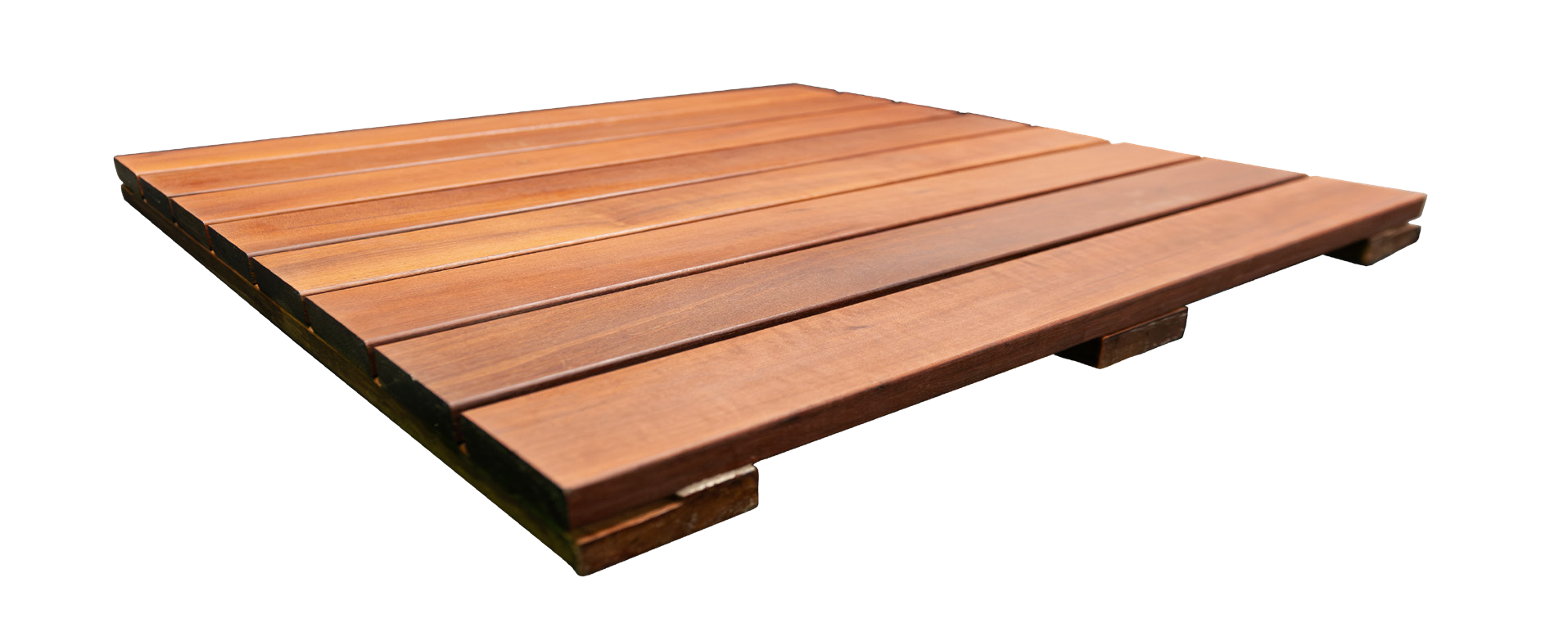

The SkyView Pedestal System offers the opportunity to use any Unilock paver on pedestals. Choose from our extensive selection of roof deck slabs available in various finishes, sizes, and colors; opt for SkyView Wood Tile; or select the Slider Images of finishes SkyView Grate and combine it with any Unilock paver.
Unilock is committed to supporting your roof deck projects with our expert pedestal take-off services. Our team reviews architectural plans, project specifications, and site conditions to determine the precise quantity of adjustable pedestals required for a seamless installation. Get started today— contact your Unilock representative to request a detailed material estimate for your next project.
Explore our architectural finishes that have the Wind Uplift Slab available for your projects. Each line features a unqiue aesthetically appealing texture with many color offerings to provide creative choices that are not compromised by function.
Select a finish below to learn more about its unique features and explore the size and colors options available.

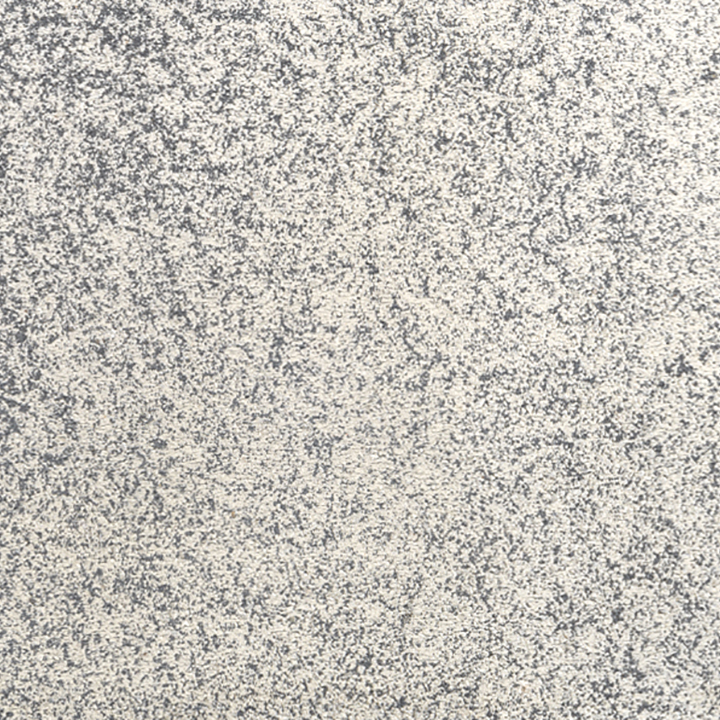

The granite-like appearance of Umbriano makes it a popular choice for sleek, modern landscape paving projects. It’s unique, mottled surface is achieved by randomly dispersing rich color and granite particles. This creates a natural look with a non-slip texture. Umbriano is factory-sealed during the manufacturing.
36 x 36”
(900 x 900mm)
H: 4” (100mm)
24 x 24"
(604.8 x 604.8mm)
H: 2” (51mm)
Arcana - 24 x 24"
(606 x 606mm)
H: 2” (50mm)
24 x48”
(604.8 x 1214.4mm)
H: 21/2” (63.5mm)
22 1/2 x 37 1/2
(570 x 950mm)
H: 23/8” (60mm)
24 x 36”
(604.8 x 909.6mm)
H: 2” (51mm)
18 x 24"
(452.4 x 604.8mm)
H: 2” (51mm)
12 x 24"
(300 x 604.8mm)
H: 2” (51mm)
18 x 36”
(452.4 x 909.6mm)
H: 2” (51mm)
24 x 36”
(900 x 900mm)
H: 2” (51mm)
24 x 24"
(604.8 x 604.8mm)
H: 2” (51mm)
3 x 12”
75 x 300mm
4”
100mm
4 x 12”
100 x 200mm
31/8”
80mm
3 x 12”
75 x 300mm
4”
100mm
237/8 x 247
(604.8 x 604.8mm)
H: 50mm

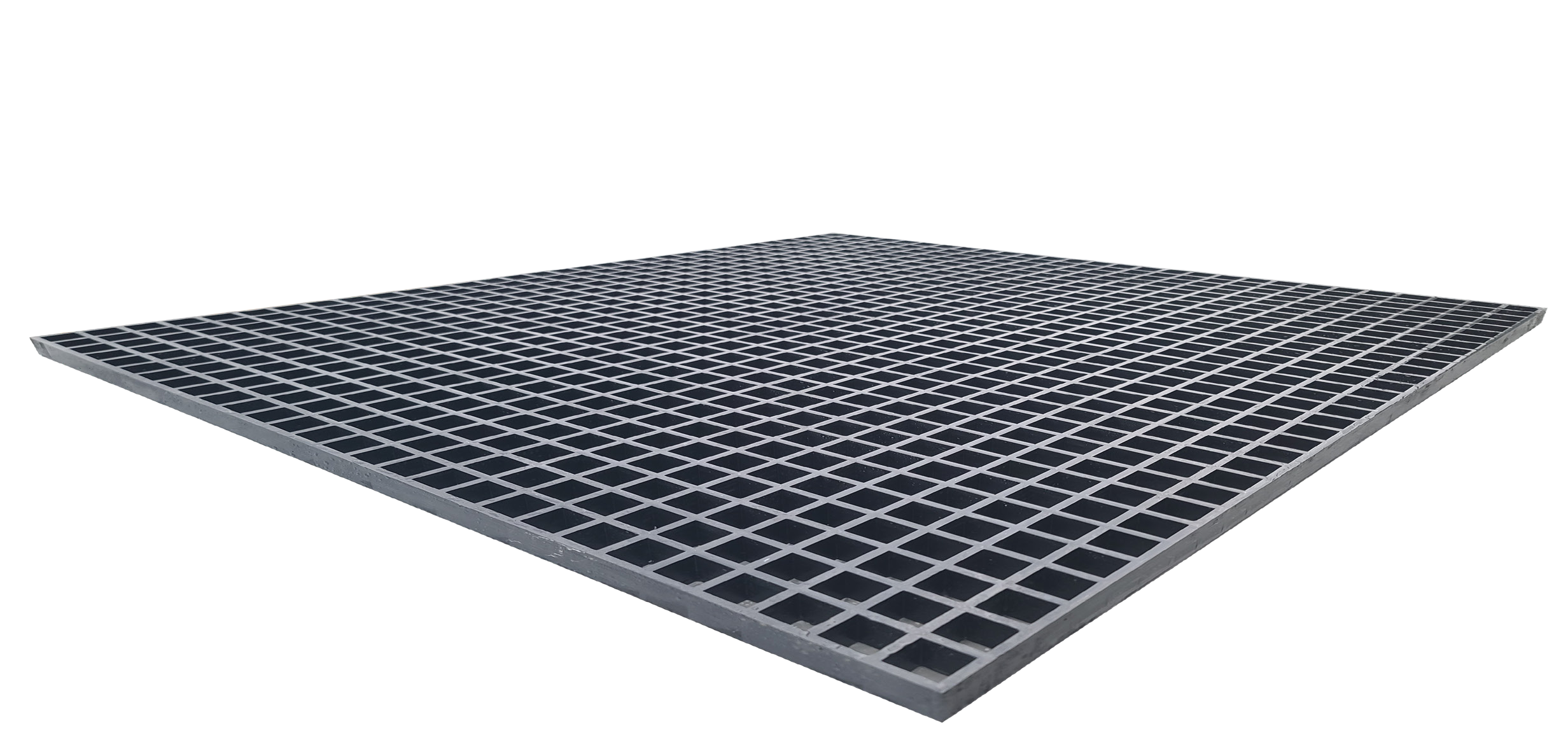

48 x 48”
1219.2 x 1219.2, H: 38.1mm
H: 1.5” (38.1mm)
Grid SIze: 1.5 x 1.5”
Light Weight and High Strength
The perfect combination of alkalis-free fiberglass yarn and resin ensures a high strength and light weight material.
The weight is ¼ of that of steel (56 lbs per unit).
Reduced Pedestal Quantities
The number of pedestals required for installation is more than 50% less compared to traditional layouts with 24 x 24” slabs, trays or grids.
Fire Resistant
The grate has a fire resistant material composition that has a CC1 fire rating based on the ASTM E-84 test.
Corrosion Resistant
With its special resin formula, the grate is resistant to acids and alkalis and can be safely used in a chemically corrosive environment.
Anti-Aging
The high quality matrix resin and anti-aging additive in the grate ensures exceptional durability and a long service life.
ROOF DECK SLABS
To further enhance our new line of roofing products, we’ve extended our range of roof deck slabs—offering more options to meet the structural and aesthetic demands of modern elevated roof top deck designs.
