SkyView™ Pedestal System
The SkyView Pedestal system consists of patent pending, fully adjustable structural supports for elevating a wide range of paving materials including Unilock slabs, wood tiles, natural stone and site amenities. The componenets that combine to create our pedestals ensure unmatched flexibility, ease of installation and durability for any application over structure including roof tops, terraces, parking garages and more.
L: 7", W: 7", H: 0.38"
L: 177.8, W: 177.8, H: 9.6mm
D: 3"
D: 76.2mm
L: 7", W: 7", H: 2.25"
L: 177.8, W: 177.8, H: 57.2mm
D: 4.43", H: 5"
D: 112.5, H: 127mm
D: 4.43", H:10"
D: 112.5, H: 254mm
D: 4.75", H: 2.3"
D: 120.7, H: 58.4mm
L: 6.5", W: 6.5", H: 0.13"
L: 165.1, W: 165.1, H: 3.3mm
Components:
1 - Pedestal Standard Kit
3 - 10” Cores
2 - Collars
1 - Top Pad (optional)

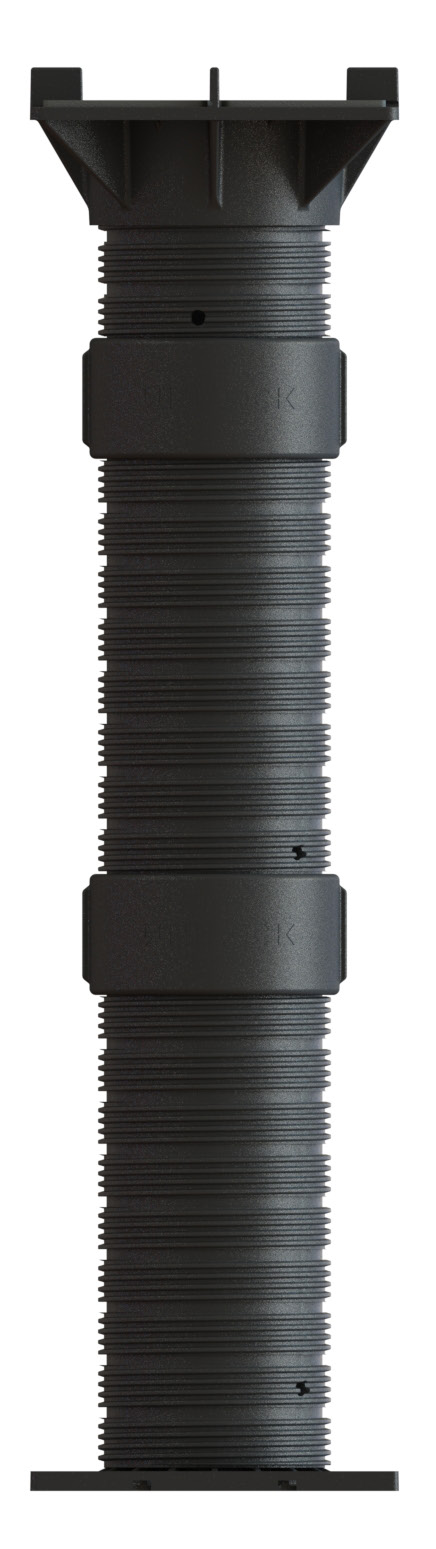

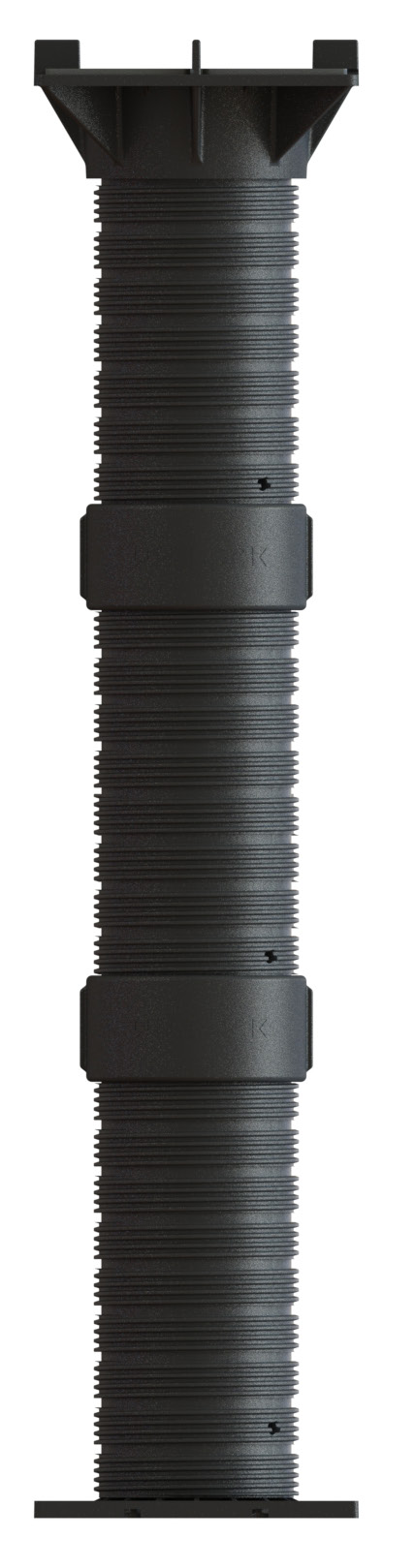

Components:
1 - Pedestal Standard Kit
2 - 10” Cores
2 - 5” Cores
2 - Collars
1 - Top Pad (optional)

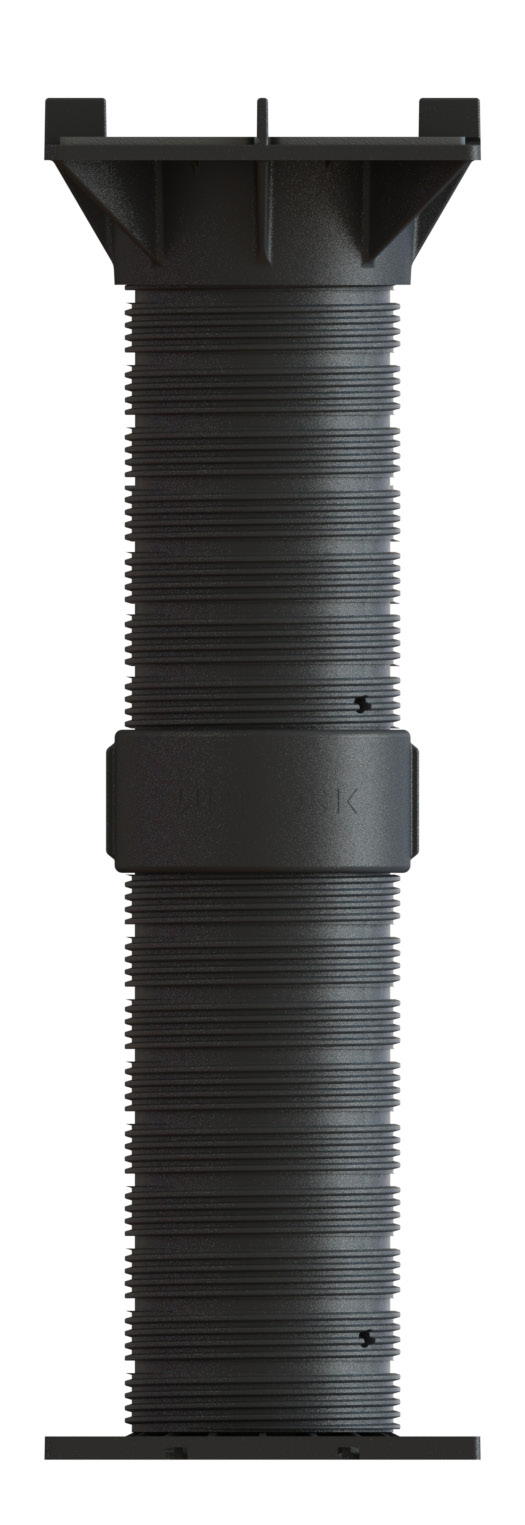

Components:
1 - Pedestal Standard Kit
2 - 10” Cores
1 - Collar
1 - Top Pad (optional)

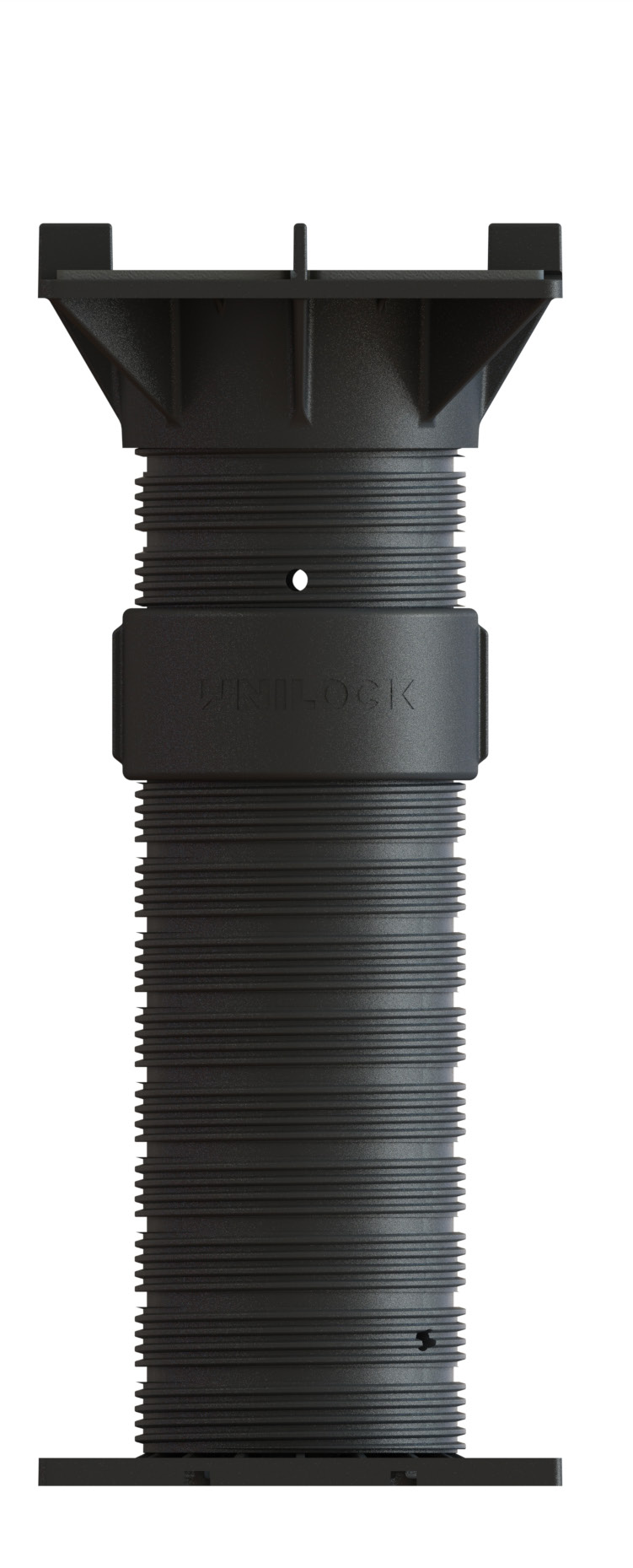

Components:
1 - Pedestal Standard Kit
1 - 10” Core
1 - 5” Core
1 - Collar
1 - Top Pad (optional)
Components:
1 - Pedestal Standard Kit
1 - 10” Core
1 - Top Pad (optional)

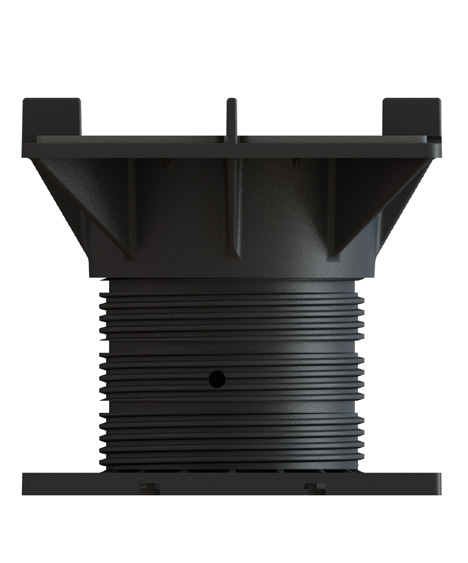

Components:
1 - Pedestal Standard Kit
1 - 5” Core
1 - Top Pad (optional)
FOR PEDESTAL
HEIGHTS SHORTER
THAN 3”, USE
SKYVIEW WAFFLES.
Pavers: Unilock meets and exceeds ASTM C936 – Standard Specifications for Solid Concrete Interlocking Paving Units using test methods conforming to:
- ASTM C1645 for Freeze Thaw Durability <225g/m2 • C140 for Compressive Strength >8000 psi and Absorption <5%
- C418 for Abrasion Resistance
Slabs: Unilock meets and exceeds ASTM C1782 – Standard Specification for Segmental Concrete Paving Slabs using test methods conforming to:
- ASTM C1645 for Freeze Thaw Durability <225g/m2 • C140 for Compressive Strength >8000 psi , Flexural Strength >725 psi, and Absorption <5%
- C418 for Abrasion Resistance
Potential LEED Credits for Using Unilock Non-Permeable Pavers
LEED BD+C: New Construction – LEED v4.1
- Materials and Resources
- Sourcing of Raw Materials: Responsible Sourcing of Raw Materials – Recycled Content
- Material Ingredients: Option 1. Material Ingredient Reporting – Health Product Declaration
- Environmental Product Declarations: Option 1. Environmental Product Declaration (EPD)
- Sustainable Sites
- Heat Island Reduction: Option 1. Nonroof and Roof
Potential LEED Credits for Using Unilock Permeable Pavers
LEED BD+C: New Construction – LEED v4.1
- Materials and Resources
- Sourcing of Raw Materials: Responsible Sourcing of Raw Materials – Recycled Content
- Material Ingredients: Option 1. Material Ingredient Reporting – Health Product Declaration
- Environmental Product Declarations: Option 1. Environmental Product Declaration (EPD)
- Sustainable Sites
- Rainwater Management: Option 1. Percentile of Rainfall Events
- Heat Island Reduction: Option 1. Nonroof and Roof
ROOF DECK SYSTEM PRODUCTS
Don’s see what you need for your next roof deck project.
Explore the other options available in our SkyView System.

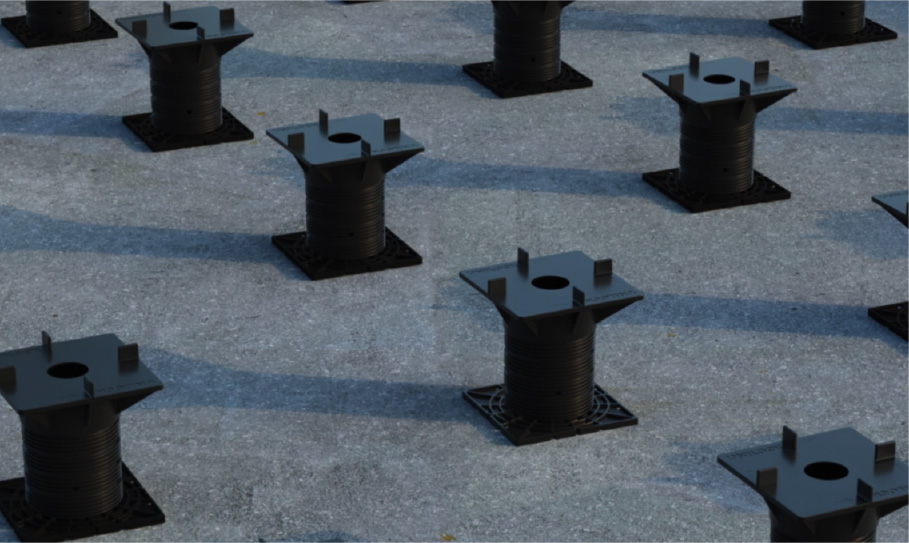

The SkyView Pedestal System is the simpliest and highest quality pedestal system on the market. The patent-pending design uses up to nine compentents to create pedestals ranging from 1/2” up to 31” in height. With these versatile yet simple components, SkyView Pedestals ensure unmatched adaptability, ease of installation and durability for any application over structure including roof tops, terraces, parking garages and more. Watch this video to learn more about the SkyView Pedestal System.
The Benefits of SkyView Pedestal System
Unique patent-pending design
Adjustable heights from ½" to 31" without cross-bracing
Slope compensation up to 6%
Orbital socket for ease of leveling
Large footprint to provide stability
Consistent slab alignment with 3/16” spacer tabs
Resistant to water, mold, and freeze/thaw cycles
Manufactured from recycled polypropylene
Made in USA
SkyView Pedestal System can be used in a variety of applications over structure, in both commercial or residential settings, including:
- Rooftop Decks
- Pool Decks
- Balconies
- Terraces
- Green Roofs
- Mechanical Access Walkways
- Sleepers
- Catwalks
SkyView Pedestal System: Component Features & Functions

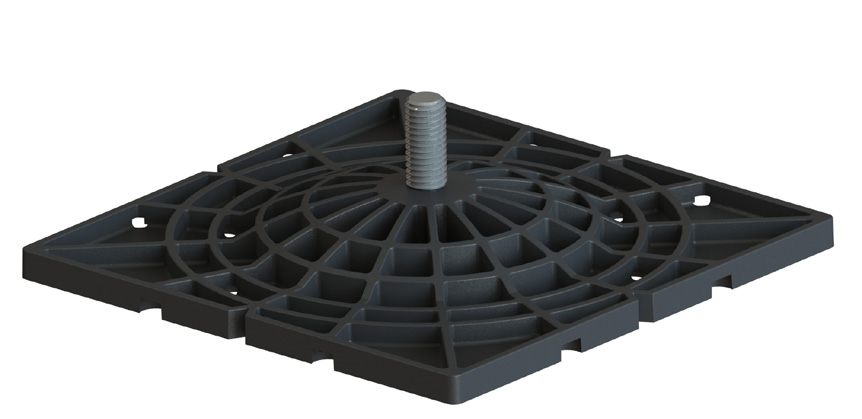

BASE
Acts as the foundation of the pedestal
Large Surface Area: The 49 square inch Base provides a stable foundation for the system and aids in load distribution.
Textured Dome: The convex dome on the top of the Base fits into the concave socket on the botom of the Cores, allowing orbital movement to adjust for slopes up to 6%. Its textured surface improves the connection between the base and cores.
Drainage Holes: A collection of holes in the Base allows for proper water drainage while maintaining its structural integrity. V-Notches: Each side of the Base features a v-shaped notch to assist in aligning a field of pedestals

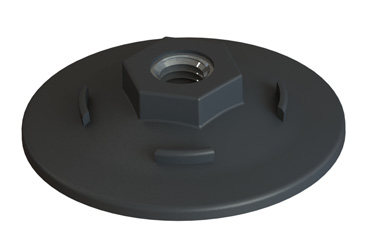

WASHER
Secures a ‘Core’ to the ‘Base’
Curved Profile: The bottom of the Washer mimics the socket shape on the Cores to ensure a flush connection when installing a Core on the Base.

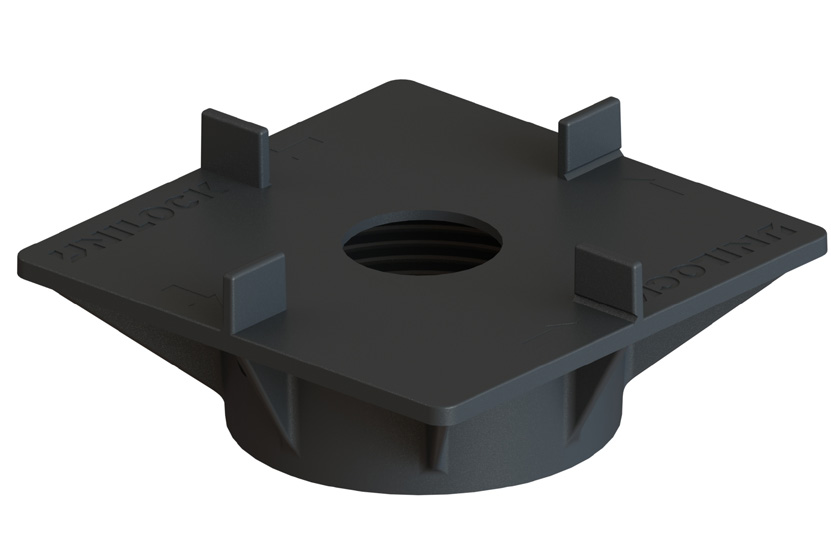

TOP
Provides a large, stable surface to lay surfacing materials
Large Surface Area: The 49-square-inch top provides an ideal footprint to support various surfacing materials, including concrete slabs, wood tiles, natural stone, porcelain tile, and grates.
3/16” Tabs: The top has four 3/16-inch tabs, one on each side, to ensure fast and easy alignment when installing surfacing materials such as concrete slabs.
Sight Hole: Allows the installer to visually verify full engagement of the Top with the Core, ensuring a secure connection between the two components.

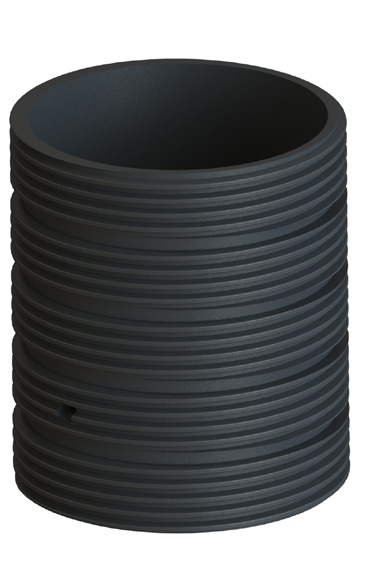

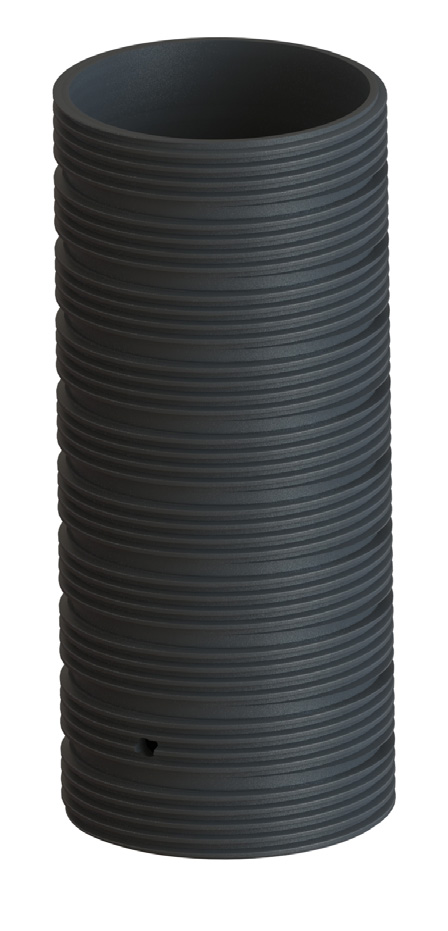

5” CORE & 10” CORE
Extends the pedestal height
Textured Socket: The concave socket on the bottom of the Core fits onto the convex dome on the Base, allowing orbital movement to adjust for slopes up to 6%. Its textured surface improves the connection between the base and cores.

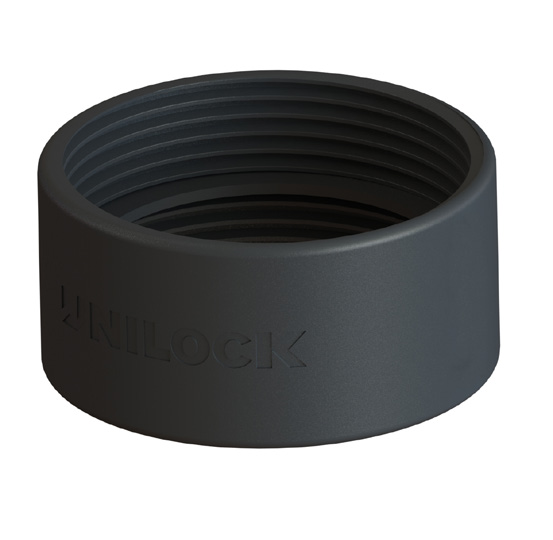

COLLAR
Connects two ‘Cores’ together
Center Engagement Ring: The collar has a protruding ring on the inside at the mid point of its height. When connecting two cores, full-engagement is reached when the ring prevents further tightening of both cores
1/2” WAFFLE
Acts as a pedestal for
low-profile applications
Waffle Design: When stacking multiple Waffles, the component’s design allows them to interlock, preventing lateral movement and improving structural stability.
3/16” Tabs: The Top features four 3/16” inch tabs at the center of all sides to facilitate easy and fast alignment when installing surfacing materials.
1” WAFFLE
Acts as a pedestal for
low-profile applications
Waffle Design: When stacking multiple Waffles, the component’s design allows them to interlock, preventing lateral movement and improving structural stability.
3/16” Tabs: The Top features four 3/16” inch tabs at the center of all sides to facilitate easy and fast alignment when installing surfacing materials.

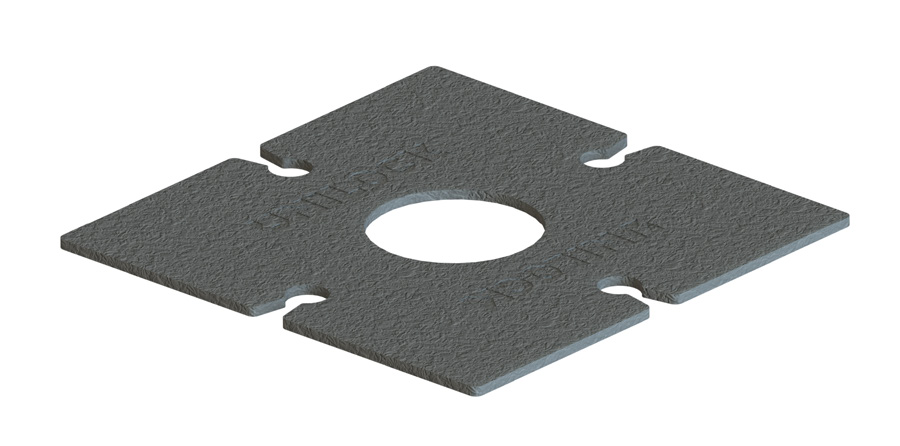

TOP PAD
Placed on the ‘Top’ to aid in noise dampening and grip
Rubber Pad: The Top Pad is made from rubber which aids in sound dampening, shock absorption, and grip.
The SkyView Pedestal System offers the opportunity to use any Unilock paver on pedestals. Choose from our extensive selection of roof deck slabs available in various finishes, sizes, and colors; opt for SkyView Wood Tile; or select the Slider Images of finishes SkyView Grate and combine it with any Unilock paver
Unilock is committed to supporting your roof deck projects with our expert pedestal take-off services. Our team reviews architectural plans, project specifications, and site conditions to determine the precise quantity of adjustable pedestals required for a seamless installation. Get started today— contact your Unilock representative to request a detailed material estimate for your next project.
