SkyView Ipe Wood Tile

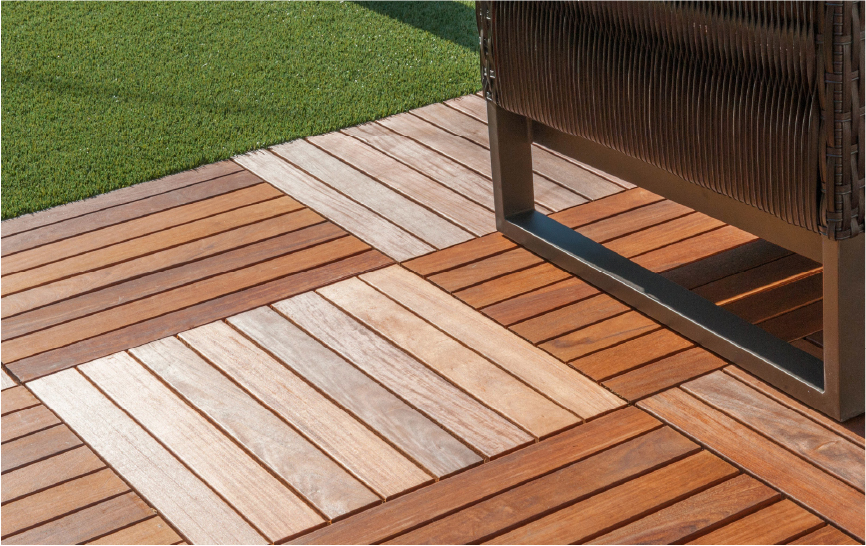

Wood brings a unique warmth and character to any project, and our SkyView Ipe Wood Tiles are no exception. Sustainably harvested, these 24” x 24” Ipe Brazilian Walnut tiles are not only stunning but also slip-resistant and resilient. Their dense hardwood composition makes them perfect for use on SkyView pedestals, allowing for seamless integration into roof deck designs with a variety of complementary paving materials, such as concrete slabs, natural stone, and porcelain tiles.
237/8 x 247/8
(604.8 x 604.8mm)
H: 50mm
Pavers: Unilock meets and exceeds ASTM C936 – Standard Specifications for Solid Concrete Interlocking Paving Units using test methods conforming to:
- ASTM C1645 for Freeze Thaw Durability <225g/m2 • C140 for Compressive Strength >8000 psi and Absorption <5%
- C418 for Abrasion Resistance
Slabs: Unilock meets and exceeds ASTM C1782 – Standard Specification for Segmental Concrete Paving Slabs using test methods conforming to:
- ASTM C1645 for Freeze Thaw Durability <225g/m2 • C140 for Compressive Strength >8000 psi , Flexural Strength >725 psi, and Absorption <5%
- C418 for Abrasion Resistance
Potential LEED Credits for Using Unilock Non-Permeable Pavers
LEED BD+C: New Construction – LEED v4.1
- Materials and Resources
- Sourcing of Raw Materials: Responsible Sourcing of Raw Materials – Recycled Content
- Material Ingredients: Option 1. Material Ingredient Reporting – Health Product Declaration
- Environmental Product Declarations: Option 1. Environmental Product Declaration (EPD)
- Sustainable Sites
- Heat Island Reduction: Option 1. Nonroof and Roof
Potential LEED Credits for Using Unilock Permeable Pavers
LEED BD+C: New Construction – LEED v4.1
- Materials and Resources
- Sourcing of Raw Materials: Responsible Sourcing of Raw Materials – Recycled Content
- Material Ingredients: Option 1. Material Ingredient Reporting – Health Product Declaration
- Environmental Product Declarations: Option 1. Environmental Product Declaration (EPD)
- Sustainable Sites
- Rainwater Management: Option 1. Percentile of Rainfall Events
- Heat Island Reduction: Option 1. Nonroof and Roof
The SkyView Wind Uplift System consists of three parts:
- SkyView Pedestals
- SkyView Wind Uplift Kit
- Wind Uplift Slabs
When combined, these components create a rafted paving surface with an invisible tie down mechanism that resists wind uplift pressures without compromising project aesthetics. The Wind uplift kit is what transforms our Skyview Pedestals into Wind Uplift Pedestals.
The Benefits of SkyView Wood Tile
Unmatched Strength
Compression Strength: 22,560 psi
Janka Hardness: 3,680 lbs
Durable
Crafted from solid Ipe wood, these tiles are resistant to decay, mold, and weathering. With minimal maintenance, they can last up to 75 years, ensuring beauty and performance.
Fire Resistant
Engineered for safety, these tiles meet and exceed the ASTM E108-07a Class A Spread of Flame Test.
Smooth, Safe Surface
With a fastener-free, smooth surface, these tiles offer resistance to splinters and slips, ensuring a safe and comfortable surface.
Resistance to Wind Uplift
Manufactured with kerf cuts on all four corners, these wood tiles accommodate a standard washer as part of our wind uplift system, creating an invisible tie-down mechanism that resists uplift pressures.
